Rapid & Reliable Light Weight Deflectometer (LWD) Tests
Tired of sitting around waiting for lab results while your compaction equipment collects dust? Every minute counts on site, and we get that. At Plate Testing UK, our Light Weight Deflectometer test (LWD) gives you quick, accurate, and cost-effective answers to your soil, granular layers, and backfilling materials questions, and it lets you get on with the rest of your project. With this nifty portable device, you can check compaction quality and get your in-situ modulus value on the spot, keeping your pavement layers, sub-base, and construction projects on track.
What is a lightweight deflectometer test?
The Light Weight Deflectometer test (or LWD test) is a state-of-the-art, portable device-based method for measuring the stiffness and modulus value (dynamic deformation modulus Evd) of subgrade materials, unbound layers, and base layers. Unlike traditional tests, such as the plate bearing test or dynamic cone penetrometer, the LWD delivers instant test results and is suited for a wide range of soil types, granular soils, and partially bound material.

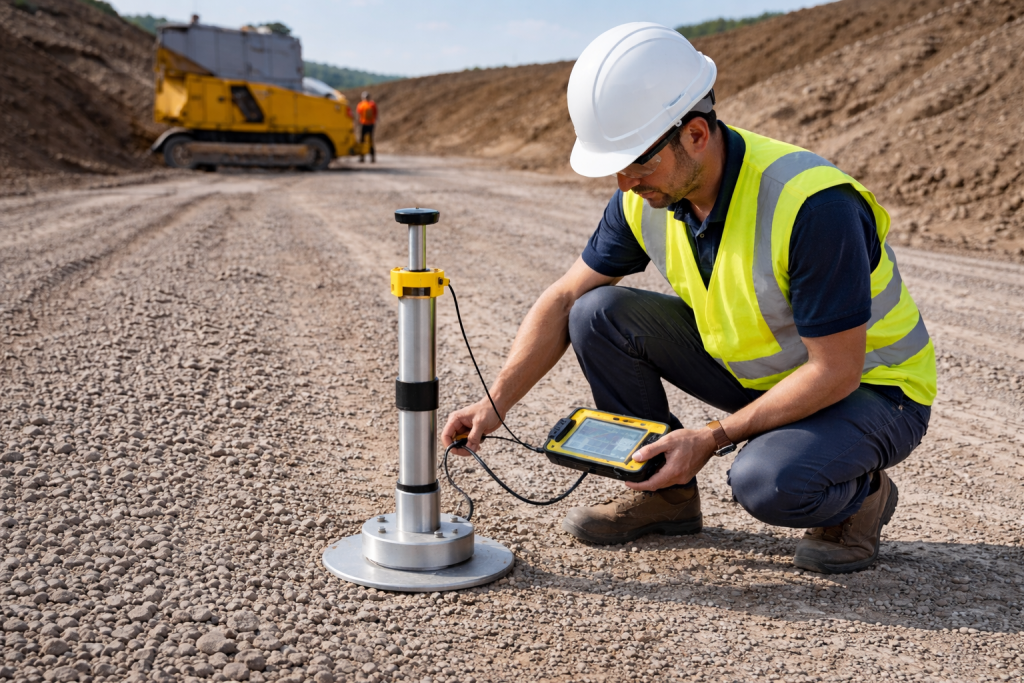

Using a base plate (or loading plate) of set plate diameter, the device measures the soil surface’s response to a known impact load delivered by dropping the weight. Sensors and a load cell measure both the applied load and the corresponding deflection, immediately calculating the design modulus value and surface modulus for the actual site condition. The SD card in the device stores all measurement data for your records.
Why Choose LWD Testing?
Well, speed, versatility, and accuracy are what make the LWD test an essential tool for site assessment and construction quality control. Here are just a few reasons why our clients love it:
Lightning Fast: Each test takes just minutes, so we can get the whole job done in no time. Perfect for base layers, backfilling materials, and road surfaces.
Portability & Access: From confined spaces to trenches and more, the independent means and lightweight construction of the device allow assessment across all site conditions and underlying layers, even where larger equipment can’t reach.
Immediate Data: View modulus values and calculated results on the device screen instantly, so you can judge deformation and determine compaction control measures in real time.
Cost-Effective Quality Control: No need for big reaction loads or expensive plant, our LWD delivers accurate data on compaction, stiffness, and design specs, without breaking the bank.
When Do You Need a Lightweight Deflectometer Test?
Our LWD test is the industry’s go-to solution for a range of jobs, including:
Compaction Control: Checking compaction quality and making sure your granular layers and sub-base are up to spec.
Subgrade and Pavement Assessment: Measuring in-situ modulus and stiffness in subgrade materials, backfilling materials, and pavement layers.
Rehabilitation Works & Road Surfaces: Perfect for testing partially bound material and unbound layers in road construction or repair.
Trench Reinstatement: Checking that backfill is good to go and not at risk of excessive settlement or failure under load.
Quick Site Checks: Ideal for rapid assessment of quality across a range of soil types and actual site conditions.
How We Work: Key Steps for LWD Testing
- Book Us: Tell us your test location and your site requirements. Our delivery is swift, and we accommodate all ground and material-level needs.
On Site: Our experienced technicians arrive fully equipped with the lightweight deflectometer, calibrated for accurate measurement.
The Test: The device plate is placed on the soil surface, and the test is conducted by applying an impact load. Our device measures the force required and the given deflection for each load increment.
Get the Results: Data is calculated instantly and stored securely, whether you need the average value, design modulus, or dynamic deformation modulus, Evd. Our reports provide clear, actionable test results for your project’s success.
Trust Our Expertise for Reliable LWD Testing Services
At Plate Testing UK, we’re not just about devices and data; we’re committed to independent, objective testing and professional results. Our team is fully trained and experienced in all aspects of LWD, CBR, and plate load testing. We understand different soil types, surface deformation, and the direct link between modulus value and bearing capacity, helping you avoid costly mistakes and ensuring your construction meets quality standards.
Our Light Weight Deflectometer (LWD) tests are performed using industry-leading equipment like Zorn Instruments, trusted throughout the UK for their speed, accuracy, and repeatability.
Ready to Ensure Compaction Quality with a Light Weight Deflectometer Test?
For quick delivery, competitive pricing, and LWD services you can rely on, contact Plate Testing UK today. Our independent and accurate services let you measure, test, determine, and assess compaction, surface modulus, stiffness, and design values for every construction scenario.
